Installing Ring Peephole Cam (Door View Cam)

Code: P1-67

Code: P1-68

Code: P1-77

Code: P1-101

Set up your Ring Peephole Cam (Door View Cam) with this step-by-step guide.

If you have an unusual door view, it might interfere with the installation. Learn more about installing Peephole Cam on unusual peepholes.

Watch the video guide for installing a Peephole Cam

View and download the manual for Peephole Cam (Door View Cam).

Tool included

Tool for removing the existing peephole, included in box with Peephole Cam.

Note: Remove protective film from device.

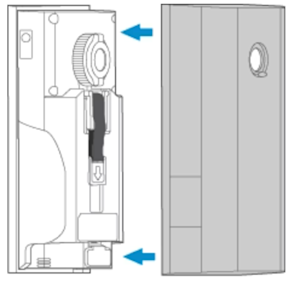

1. Remove the faceplate.

Arrows showing faceplate being moved away from Peephole Cam.

2. Remove the Quick Release Battery.

Illustration with arrows showing the battery being pulled down and out of the Peephole Cam.

3. Plug the battery into a USB port using the provided charging cable. Learn more about charging your doorbell battery.

Arrow showing where to plug the USB cable into port on Quick Release Battery to charge

Installing Peephole Cam (Door View Cam)

1. Use provided tool to gently cut around peephole (door view) from both sides of door. This will allow for easy removal of the original peephole (door view).

Inside

Arrows showing tool included with Peephole Cam circling around the peephole to remove it inside

Outside


2. Put the tool’s flat edge in the slots to unscrew.

3. Remove peep lens.

4. Smooth out the hole’s edges with the tool.

5. From the outside, insert your Peephole Cam (Door View Cam) through the hole.

Illustration of Peephole Cam with a blue arrow pointing toward the door showing the device being inserted into the door.

6. Remove the cap.

Optional: Install the large view hole adapter if needed.

Illustration of large view peephole adapter included in the box with Peephole Cam, with a blue arrow pointing toward the opening on the adapter.

7. Connect the back of the Peephole Cam (Door View Cam) on the inside of your door.

Arrow pointing toward door showing connecting Peephole Cam to screw coming out of door

8. Gently pull the flex cable out of the tube until there’s no slack. Use the tool to secure the inside peephole (door view).

WARNING: Handle flex cable gently to prevent tearing. If you need to inspect your flex cable for tears, refer to our guide with images for reference. If you need to replace the flex cable, use our installation guide for replacing it.

Illustration of Peephole Cam with blue arrow pointing out and away from the device showing pulling the cable through the tube.

9. Gently pull excess cable through clip.

Illustration of Peephole Cam with an arrow pointing toward the clip and the cable being pulled down through it.

10. Reinsert the battery and secure the back cover. You can slide the peephole cover up for privacy.

lllustration of inserting Quick Release Battery into Peephole Cam (Door View Cam).

Illustration showing putting the back cover on the Peephole Cam (Door View Cam).

11. Set up the Peephole Cam (Door View Cam) in the Ring app.
