Installing the Hardwiring Kit for cameras

This article provides a step-by-step process for installing the Hardwiring Kit for Ring cameras.

Warning markWARNING: If you can't easily identify the wires coming out of your junction box, or have difficulty with or are uncomfortable connecting them, consult a licensed electrician.


Installation manuals for the Hardwiring Kit for Spotlight Cam Plus and Pro

View the manual for Spotlight Cam Pro Wired. View the manual for Spotlight Cam Plus Plug-In.

Installation manuals for the Hardwiring Kit for Outdoor Cam (previously Stick Up Cam (3rd Gen))

View the manual for Outdoor Cam Plug-In.

Hardware included:

  • Security screws (A)
  • Mounting screws (B)
  • S-hook and wire nuts (C)
Illustration of included mounting hardware.

Tools needed:

  • Phillips head screwdriver
  • Drill
  • Silicone caulk or sealant
  • Pencil
Illustration of tools required for installation, a cross point screw driver, a pencil, a battery powered drill and sealant application tool.

Before starting, shut off power at the breaker

Before you begin installing your Hardwired Kit, make sure you're following safety code standards.

Warning markWARNING: Electrical shock hazard. Disconnect power to installation area at your circuit breaker or fuse box before beginning installation. Always use caution when handling electrical wiring. Installation by a qualified electrician may be required in your area. Refer to your local laws and building codes before performing electrical work; permits plus professional installation may be required by law. Your Hardwired Kit must be installed on a 4" round UL listed weatherproof electrical box when installed outdoors.

Note: If your power system is classified as OVC Ill, please check the building "Distribution Panel", Ex switch panel has an installed surge protectors. Ensure that the surge protector is a UL 1449 certified surge protector to reduce main transient voltage to overvoltage category II (2500 V pk or lower) before connecting to all AC inputs. If the there is no surge protector, do not install the Hardwired Kit without one.


Installing out-of-wall, four-inch metal and plastic junction boxes

For this installation, use 14 AWG (American Wire Gauge) or thicker electrical cable with three wires.

Step 1: Connect the wires

For metal: Connect the green ground wires with junction box ground screw. Use home protective grounding and wired mount bonding conductor wires as shown in the diagram. Then, connect the white neutral and black hot wires with wire nuts.

Illustration of hardwiring installation for Ring Cameras in metal junction boxes.

For plastic: Connect the green ground wires with a wire nut (Home protective grounding and wired mount bonding conductor wires). See connection diagram. Then, connect the white neutral and black hot wires with wire nuts.

Illustration of hardwiring installation for Ring Cameras in plastic junction boxes.

Optional: Temporarily install a machine screw to hold the S-hook for help connecting the wires. Remove the temporary screw after wires are connected.

If you need to remove for metal and plastic:

Remove the neutral (white) and hot (black) wires. Then, remove the wired mount bonding conductor wire and the home protective grounding (green) conductor wire.


Step 2: Disconnect neutral and hot wires, and remove ground wires from both mount and house

For metal and plastic: Gently put the wires in the junction box and secure the wired mount to the adapter plate using two machine screws with O-rings.

Illustration showing to gently put the wires in the junction box and secure the wired mount to the adapter plate with 2 machine screws with o-rings.

For metal: Then, tighten the screws into the wired mount until the foam backing fully seals the junction box to prevent water from entering.

Illustration showing to tighten the screws until foam creates a waterproof seal against the junction box.

For plastic: Take four O-rings off the machine screws and apply them to four tapping screws. Then, tighten the screws into the wired mount until the foam backing fully seals the junction box to prevent water from entering.

Illustration showing to move o-rings to the tapping screws then tighten until foam seals the junction box.


Step 3: Weatherproofing

Apply a weatherproof silicone caulk or sealant around the outside where the wired mount and junction box or wall meet to prevent water from entering the junction box.

Illustration of sealant being applied around mount edge to form a waterproof barrier.


Step 4: Mount the camera

Mount your Ring security camera.


Installing in-wall, 3.5 in (89 mm) plastic junction box and switch box

Requires a minimum 14 American wire gauge or higher three-core cable.

Step 1: Connect the wires to wire nuts

Connect the green ground wires with a wire nut. Then, connect the white neutral and black hot wires with wire nuts.

Illustration of the mounting bracket being attached to the wall.


Step 2: Connect the wires together

Connect the neutral (white), hot (black), and ground (green) wires with wire nuts.

 Illustration showing a machine screw installed temporarily to hold the S-hook to connect the wires, remove the screw after wires are connected.

Optional: Temporarily install a machine screw to hold the S-hook for help connecting the wires. Remove the temporary screw after wires are connected.

If needed to remove for metal and plastic:

Remove the neutral (white) and hot (black) wires. Then, remove the wired mount bonding conductor wire and the home protective grounding (green) conductor wire.


Step 3: Attach the wired mount to the adapter plate

Stuff the wires gently into the junction box and screw the wired mount to the adapter plate with four machine screws with O-rings.

Illustration showing to stuff the wires gently into the junction box and screw in the adapter plate with 4 screws with o-rings.


Step 4: Weatherproofing

Apply a weatherproof silicone caulk or sealant around the outside where the wired mount and junction box or wall meet to prevent water from entering the junction box.

Illustration of sealant being applied around mount edge to form a waterproof barrier.


Step 4: Mount the camera

Mount your Ring security camera.


Mount the Spotlight Cam Plus or Pro

Step 1: Remove weather cover

Illustration showing how to remove the weather cover.


Step 2: Remove the battery cover

Twist the cover counter-clockwise to remove. Slide the camera onto the wired mount's swivel arm. Then, re-attach the battery cover to lock the swivel arm in place.

Illustration showing how to remove the battery cover on the Spotlight Cam Plus and Pro.


Step 3: Connect USB-C cable

Illustration showing to remove the plug cover from the USB-C cable then plug it in to your camera's USB-C port.


Step 4: Attach weather cover

Snap the weather cover into place to cover exposed cables.

Illustration showing how to snap the weather cover into place to cover exposed cables.


Step 5: Setup the Spotlight Cam Plus or Pro in the Ring app

Use the Ring app to set up your Ring Spotlight Cam Plus or Pro to your wifi.


Step 6: Adjust camera angle

You can rotate the camera to adjust the field of view.

  1. Remove the protective film from the device to allow motion detection and proper view.
  2. Use the Live View feature in the Ring app to make sure the camera is monitoring the desired area. Rotate the camera to adjust the view accordingly.
  3. Insert and tighten the screw on the metal collar to fix the Spotlight Cam Plus or Pro at your preferred angle.

Learn more about positioning your Spotlight Cam Plus and Pro Battery.

Illustration showing how to tighten the ball joint screw to secure the camera in place after making adjustments.


Mount the Outdoor Cam Plus or Stick Up Cam Pro

Step 1: Prepare the camera mount

Unclasp the camera from the mount.

Illustration of camera mount unclasped.


Step 2: Detach the camera mount

Unscrew the base to detach it from the camera’s battery cover.

Illustration of a screw driver unscrewing the screw to detach the camera mount from the battery cover.


Step 3: Choose a location

Refer to wall or ceiling installation depending on the location you choose.

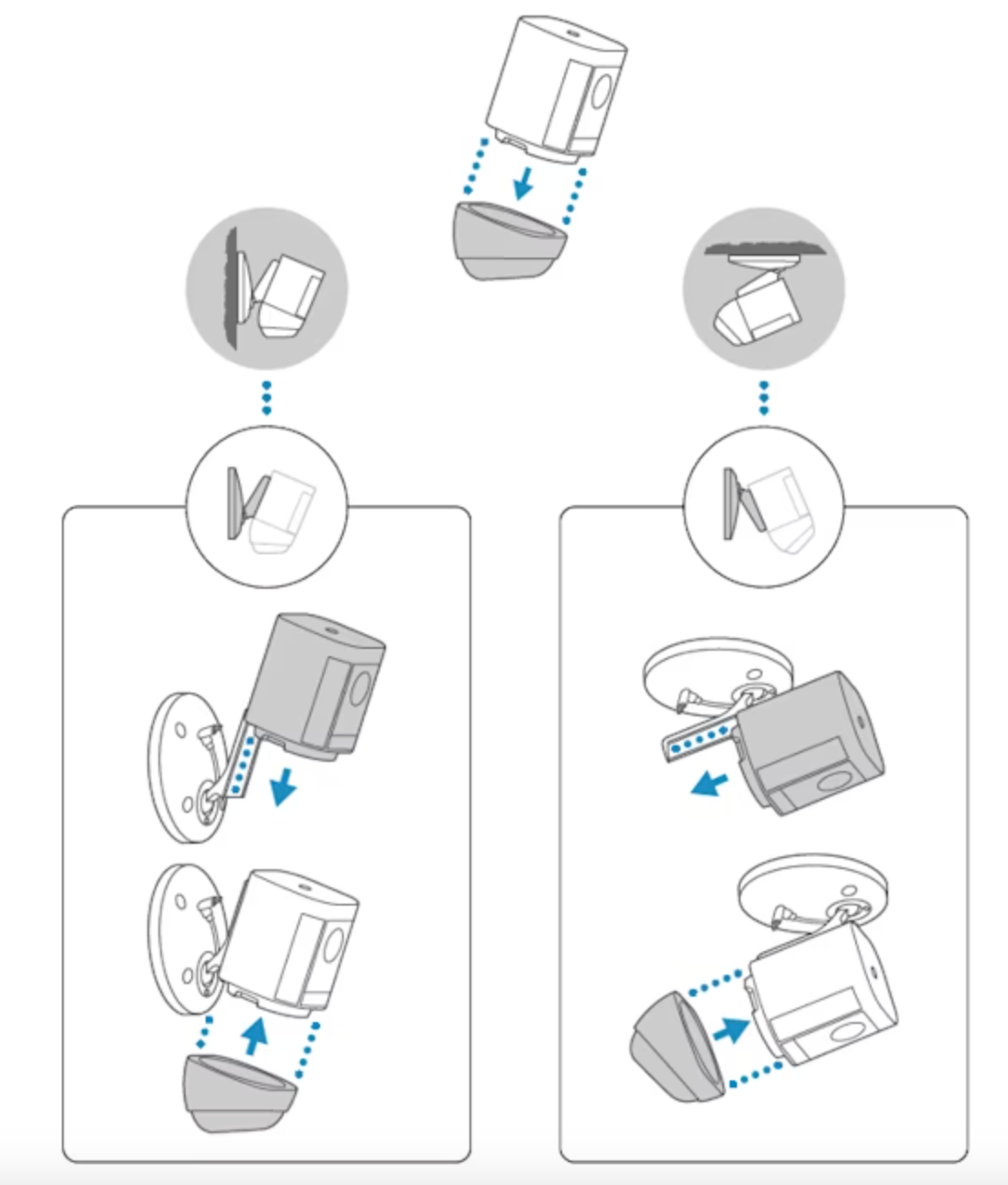

Illustration of the ceiling and wall mounting options for the Camera.


Step 4: Prepare the weather cover

Remove the weather cover and wired mount arm plate adapter.

Illustration showing to remove the weather cover and arm plate adapter from the camera.

If installing on the wall, slide the hand screw to setting A or B.

Illustration showing to move the hand screw setting to a or b depending on the installation location.

If installing on the ceiling, position your camera facing down and slide the hand screw to setting C.

Illustration showing to slide the hand screw to setting C if installing on the ceiling.


Step 5: Connect the USB-C cable

Connect the USB-C cable to the camera.

Illustration of how to plug the USB-C cable in to your camera’s USB-C port and ensure it is fully connected.


Step 6: Secure the camera

Tighten the hand screw until your camera is securely attached to swivel arm.

Illustration showing the hand screw being tightened so the camera is securely attached to swivel arm.


Step 7: Attach the weather cover

Snap the weather cover into place to protect any exposed cables.

Illustration showing the weather cover being attached by snapping into place to cover exposed cables.


Step 8: Adjust the camera angle

Tighten the ball joint screw to secure the camera position, if necessary.

Illustration of a screw driver about to tighten the ball joint screw to secure the camera position.
