Installing your Solar Charger (2nd Gen) for Battery Doorbells

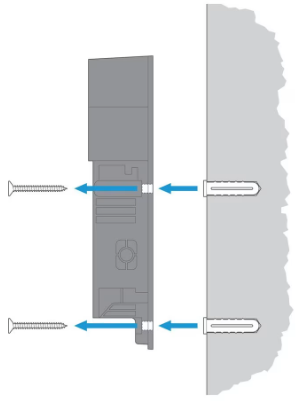

If your Ring Video Doorbell 3, 3 Plus, 4 or Ring Battery Video Doorbell Plus has already been installed, you'll need to uninstall it before putting up your Solar Charger. To uninstall the Ring Video Doorbell:

* Remove the security screw.

* Pop off the faceplate.

* Remove the mounting screws.

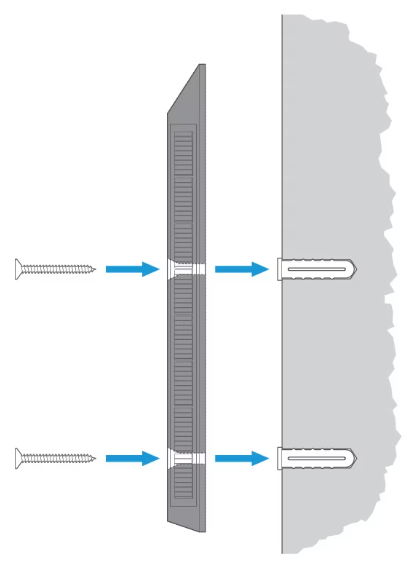

Using the provided screws mount your new Solar Charger to the wall.

If you are mounting the Solar Charger to a brick or stucco wall, you will need to use the provided wall anchors.

In the next step, you will need to connect your doorbell to the Solar Charger.

* Loosen the two screw terminals on the back of your doorbell

* Insert the wire connector from the Solar Charger under the screws on the terminal.

*

Be sure that the side of the terminal that reads "Up" is facing you when you connect the Solar Charger to the screw terminals.

* Re-tighten the screws on the terminals.

In the next step, you'll need to fit your doorbell into the recessed portion of the Solar Charger.

*

Be sure to feed the retractable wire wire back into the charger.

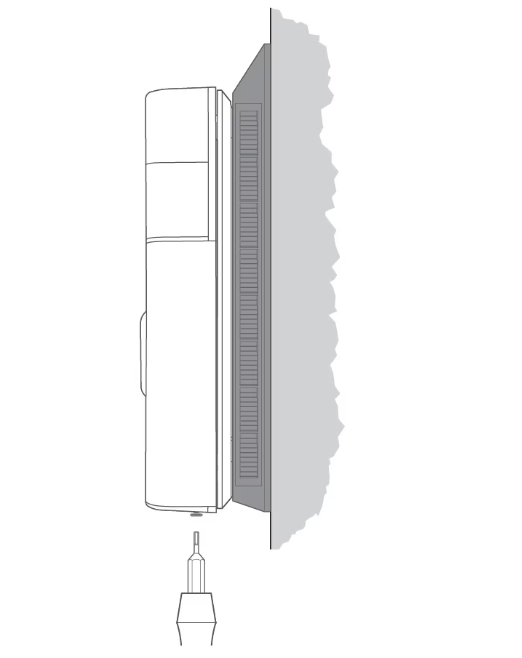

Once your doorbell has been fitted into the Solar Charger, secure it using the provided bolts.

Finish your installation by re-attaching the faceplate to your doorbell and installing the security screw.
