Wiring diagrams for Ring Video Doorbell 2 setup

If you're in the process of setting up multiple Ring Video Doorbell 2 units, internal doorbells and transformers, the following wiring diagrams may help.

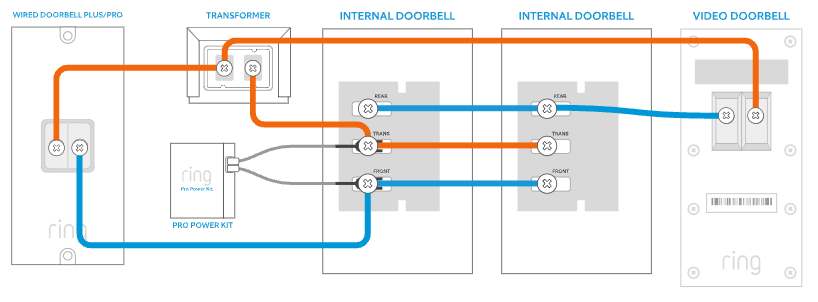

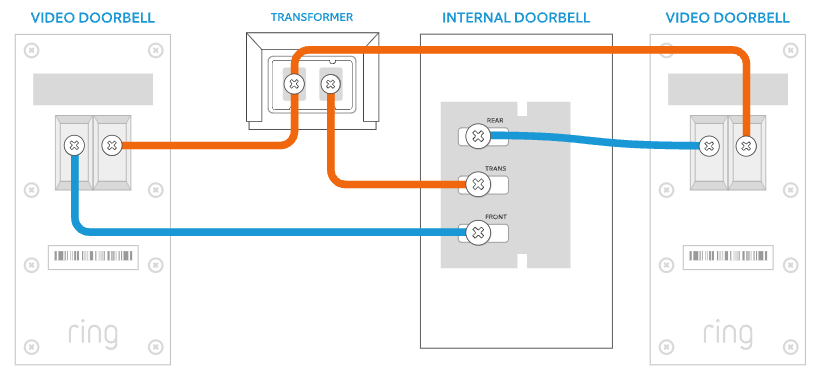

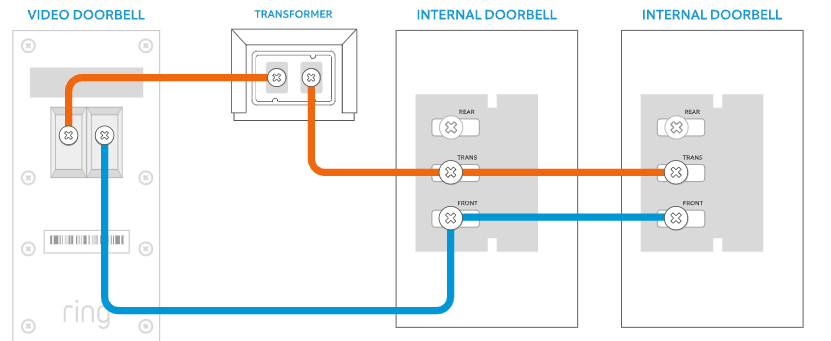

Illustration showing how to wire one battery powered doorbell to one transformer with two in-home chimes. Illustration showing how to wire two doorbells with one transformer to one in-home chime. Illustration showing how to wire one battery powered doorbell and one Video Doorbell Pro or Plus to one transformer with one in-home chime. Illustration showing how to wire one battery powered doorbell and one Wired Doorbell Plus or Pro to one transformer with two in-home chimes.
